*Item No.:SYH001X
*Name: Fire Dragon
?
*Mechanical Specifications:??
*Main Rotor Blades span: 1600 MM??
*Tail Rotor Blades span: 265MM??
*Main Blades: 720MM??
*Tail Blades: 95 mm?
*Length: 1450 mm
*Width: 265MM?
*Height: 455 mm??
*Tail Tub: 855 MM??
*Weight: about 5.4 KG
*Vent-pipe: original vent-pipe (standard version)??
*The canopy: fiberglass?
*Drive Gear Ratio: 1:8.54~12.33:4.56
*Engine: Zenoah 26CC G260PUH gasoline engine
?
*Futures
*Main frame: golden 6061 aluminum alloy frame??
*Main rotor blades: carbon fiber FUN-KEY brand main blades
*Tail rotor blades: plastic (standard version)

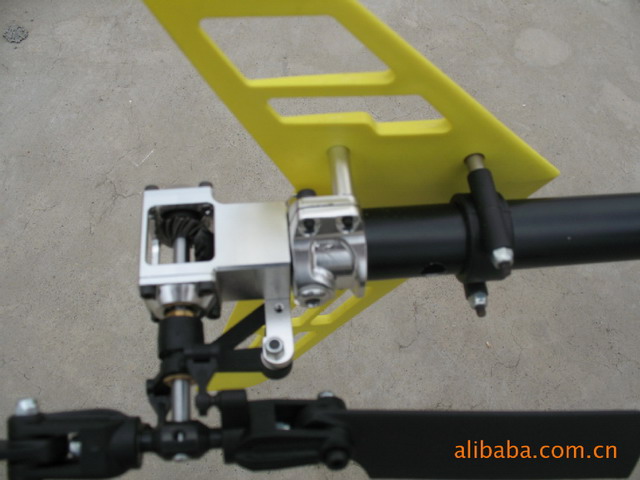

*Tail drive system: sensitive and precise shaft drive tail system.
*Tail boom: aluminum alloy 6061
*Vent-pipe: original vent-pipe from Zenoah?
*The canopy is fiberglass with a very smooth yellow gel coat. It’s ready for paint or the decals. The decals is a optional part
*Radio control requested:9 channels
*The maximum load for this helicopter is 8 KG
*The maximum flying time is about 40 minutes
?
*Just Provide (Items required to fly but not included)
*1x 9-channel Radio Transmitter capable of 120 degree e CCPM
*1x Transmitter and receiver crystal set
*5x Sport line or better servos
*mixing with Transmitter Battery, and Transmitter Battery Charger
*1x Heading hold/lock gyro
